Year: 1993 TC-K909ES

Front: Brushed metal
Color and finish: Black, Champagne
Tape transport: Direct-drive
Capstan: Double, closed loop
Motors: 3
Quartz locked:
Auto reverse:
Pitch control:
Rec Balance:
Music Search: (only 1 song)
Counter: Real time
Meter scale: DIN
Tape selector: Auto
Price: 1993: 790$
2010: about 550$
Availability: Rare.
Calibration: Bias / Rec / EQ
Assisted Cal.: (2 tones)
Peak level meter:
Noise reduction:
HX Pro: (switchable)
VU resolution*: High
Freq. response: 15-17.000Hz (norm)
15-20.000Hz (CrO2)
15-22.000Hz (metal)

*VU resolution focuses in the Dolby mark zone.



I'm always been a fan of SONY products since 1986. I loved the quality of their materials, the design and the good mechanics. Since their ugly acquisition of AIWA and the huge fails with the advent of the MP3 I'm not a fan of SONY anymore. But no one can say bad things about their highest quality products: the ES series (Elevated Standard). They represent the best of the best from the brand, built with the best materials to last for many years.

And this K909ES was the best deck available in my country under the top-of-the-line KA7ES, which was essentially the same deck but with a different internal arrangement and better materials. Some experts say it's over-engineered...

Anyway, back to the K909ES, I have had two of them. The first one, in black, was my first top line deck I've ever had. I really was shocked by it's quality. Not only by its build quality, but by its sound too.

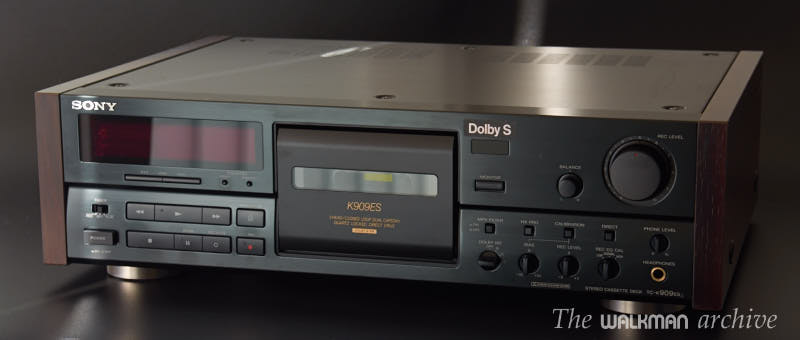

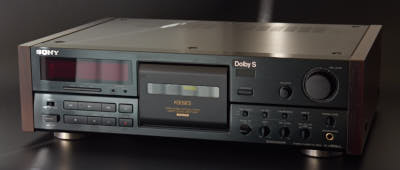

The beautiful K909ES in black.

I knew there was a Champagne version out there, but they usually go for big money. So I wait and wait for long time, until one day, luck was on my side and one of those wonderful champagne decks appeared in a 2nd hand local website. What was best is that I got it for only 200 euros, much less that the prices usually found at eBay.

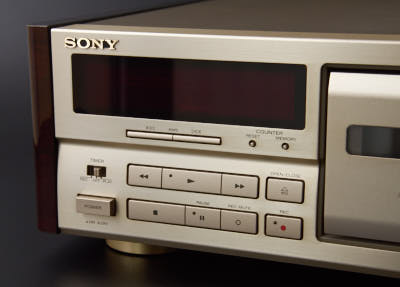

Actually this photo shows clearly a K808ES rather than a K909ES. That's because at that time a good friend of mine got a Champagne K808ES while I was still searching for a K909 in that colour. He brought the deck to me so I could take some photos... and I did. Lately when I got my K909ES I found boring to pick up my K909ES from the stack (you probably know that it's a nightmare to remove those cables and then put the device back in its place and re-wire again...). The K808 is identical to the K909, except the lacking of the HX Pro button and a very few changes inside.

The deck was in inmaculate condition; it only needed new belts and a internal calibration to take it back to factory specs. I contacted Alex at ANT-Audio and he was ready to service it and to perform some upgrades, so I carefully ship it to him in the UK. After -more or less- two months the deck was back with me and, god, it sounds gorgeous.

It's hard to not fall in love with this wonderful deck. The attention SONY engineers put to every fine detail is awesome:

The K909ES is the sucessor of the K808ES where SONY added a few features like sapphire bearings and a few other improvements. I'd say the top model from this brand was the K808. From this model on, all SONY engineers did was to add small improvements, that continued to the K909ES, followed by the K990ES (which was not sold in my country, but in others like Germany) and the K555ESJ that was only sold in Japan. All them are assentially the same deck.

Then it came the KA6ES and the KA7ES which are essentially the same deck but with different chassis. The sound is more or less the same but the cost of manufacturing and the consumer price was much higher and, in the end, the sound was improved just a very few bit.

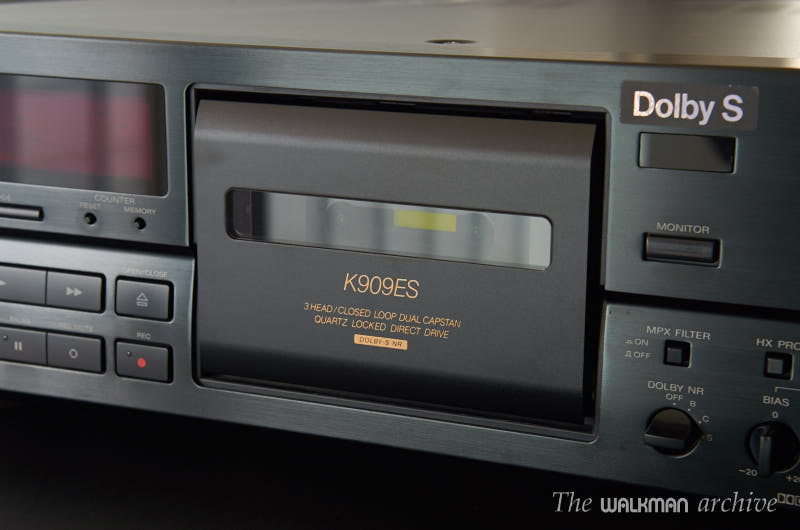

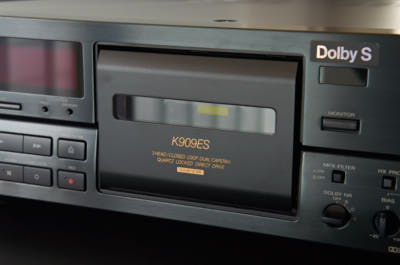

This is a 3 head deck, equipped with a direct drive mechanism, which guarantees super-stable tape transport. As it is quartz locked, the speed is almost perfect too, showing no variations because of the room's temperature.

It also features a closed loop dual capstan, which mantains a stable tension on the tape, helping to reach the perfect stable speed.

After three years of weekly use it has never failed me. The recording quality is excellent, with a quality that allows a good tape to store everything that is on a good, deeply cleaned, vinyl, especially with Dolby C, S or dbx (that I can use thanks to an external dbx 224X processor).



As many of the high-end decks, this one is pretty heavy which usually has a good meaning. Once opened we can see a very clearly and evenly distributed circuits. The mechanism is big and heavy and almost everything is easily accesible to repair.

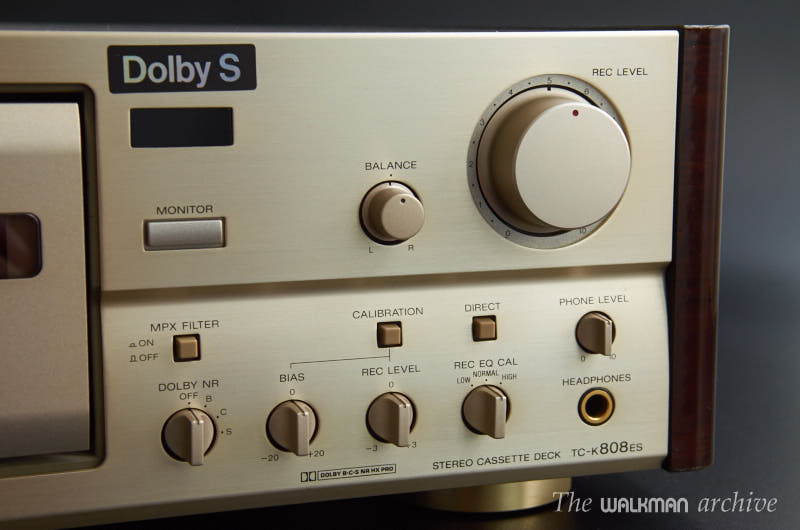

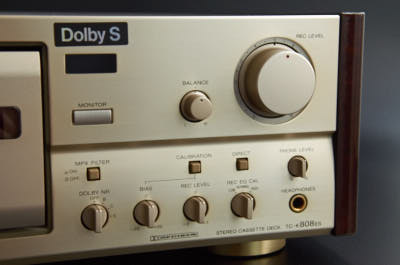

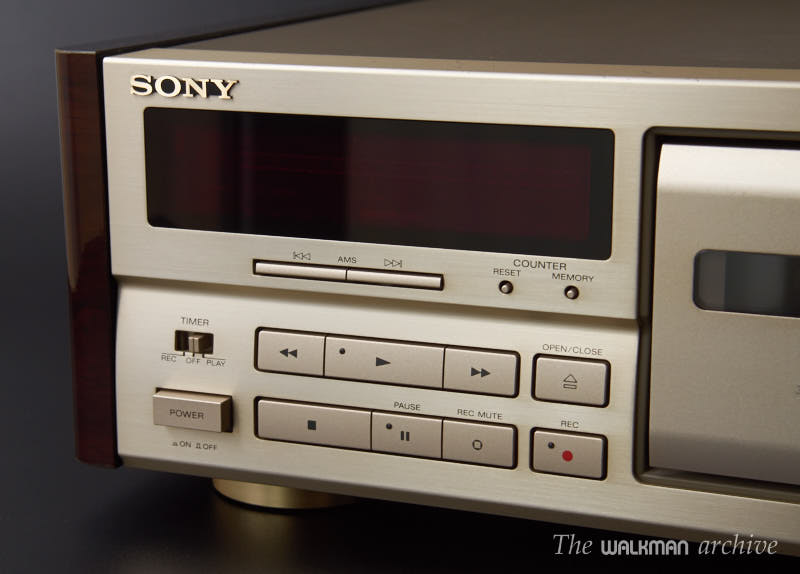

Regarding the front face, all controls have excellent touch and feel. The big recording knob clearly wins over the rest: it's a pleasure to use it, because its smoothness and precision. The whole faceplate is made of brushed metal, as well as the front door and the rec knob. However, the buttons are made of plastic.

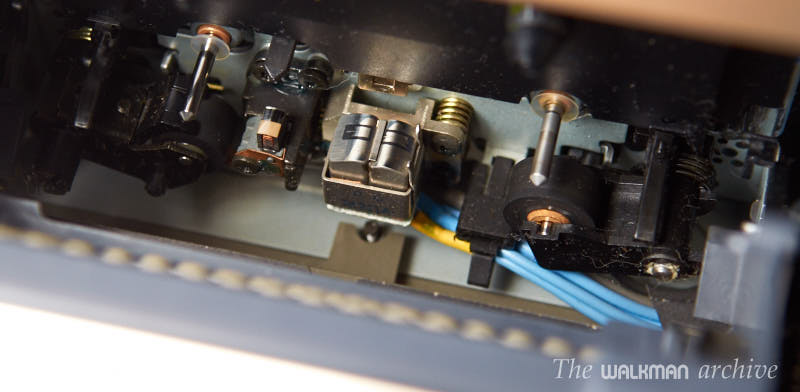

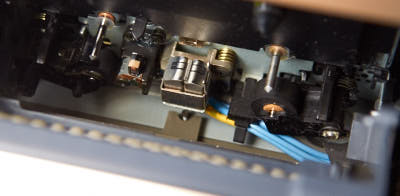

This transport is pretty good, and represent almost the best of the industry up-to-date. A closed loop dual capstan ensures a stable tension of the tape, with sapphire bearings. The quartz locked direct drive motor ensures a super precise tape speed with ultra-low W&F.

The door mechanism is motorized and has a very particular sound which to me sounds very smooth and nice. I can easily distinguish it between any other deck.


BBE Barcus Berry Electronics, the name of the actual BBE Sound, Inc.
DSL Dynamic Sound Loudness
DSL-EX Dynamic Sound Loudness EXtreme
HX Headroom Extended
MS Music Search
PLSS Private Listening Sound System
